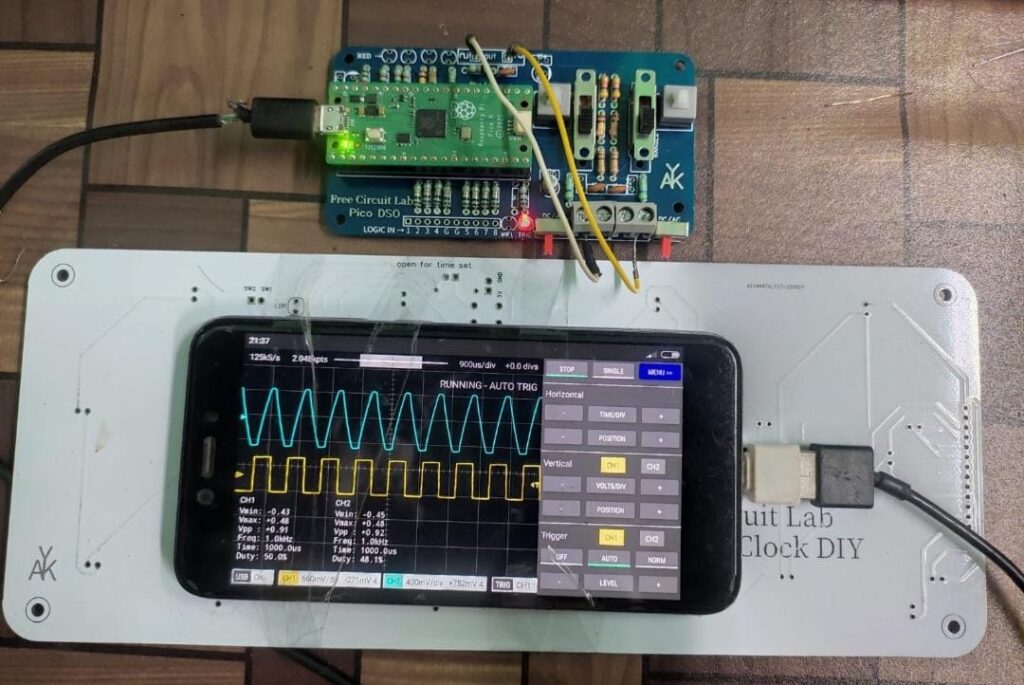

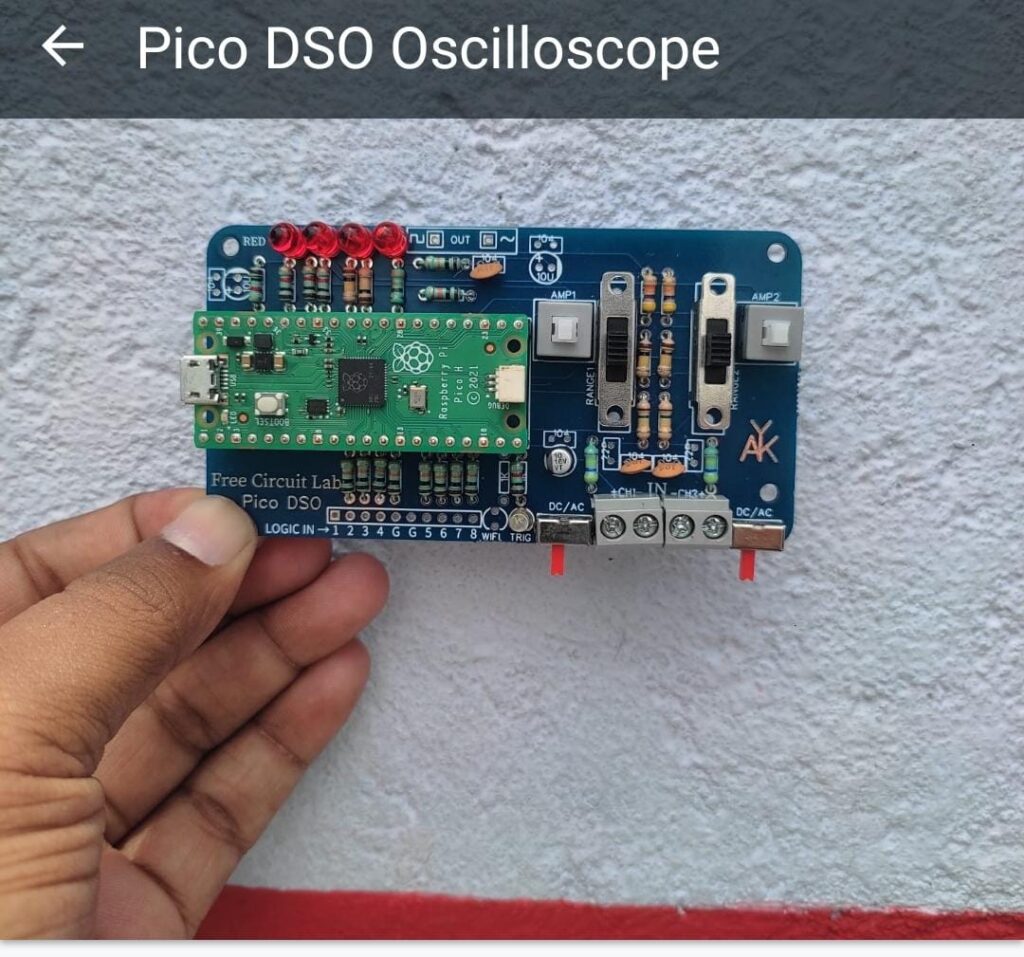

Pico DSO Oscilloscope
This is a project mainly focused on beginner-level hobbiests who want to learn electronics but can’t afford expensive DSOs…
It can be used for testing audio filters, SMPS, general experiments in the lab, and best for learning.
-This is reliable upto 250KHz analog signals(2 channel)
And 25 MHz of digital signals (8channel)
This DSO features many interesting features
Like:
•2 channel support (upto 60V peak to peak)
•2 Math channels with many functions
•6 Voltage ranges (150mV to ±30V peak)
•Run/stop/single trigger
•Time & Frequency domain display (YT, XY & FFT)
•2MHz Sampling (500KHz max Range)
•8Channel 25MHz Logic Analyzer (for Digital signal, 5V or 3.3V)
•Basic signal generator for testing (Sine, Square, Triangle)
•AC-DC Coupling
NOTE – Connection type: USB (WiFi is also possible, contact me)
It requires a phone 📱 with Android 6.0 or higher.
-𝙘𝒍𝙞𝒄𝙠 𝙝𝒆𝙧𝒆 to see – 𝐒𝐩𝐞𝐜𝐬 𝐢𝐧 𝐝𝐞𝐭𝐚𝐢𝐥𝐬
•Up to 2MS/s sample rate (1MS/s with both channels enabled)
•Maximum analog bandwidth: 500kHz
•Record length: 2048 samples per channel in RUN mode, 100kS total for single shot captures
•Input Impedance:~ 300KΩ
•Maximum Input voltage range: +/- 30V; 60V peak to peak (divided into 6 Voltage ranges, 3 Normal, 3 Amplified)
•Coupling: AC/DC
•Connectivity: USB, Wi-Fi (Wi-Fi requires Raspberry Pi pico W board, contact me for details)
•Display Modes: YT, FFT, FFT+YT, X-Y, X-Y+YT
(YT: Voltage Vs Time, normal display
FFT: Fast Fourier Transform; helps to read frequency content and harmonics inside the signal
XY: Voltage Vs Voltage, Helps to test components by Lissajous figure )
•Trigger Types: Rising edge/Falling edge
•Trigger Modes: Auto/Normal (Run Mode + Single captures)
•Cursors: YT and FFT horizontal and vertical cursor lines (Cursors helps to accurately measure voltage, time , ∆V, ∆t etc..)
•On-screen measurements: Vmin, Vmax, Vpp, Frequency, Period, Duty
•Snapshot measurements (screen or sample record): Mean, DC RMS, AC RMS
•Export data format: CSV
•Signals can be input via Screw Terminals for 2 channel
•Signal generator – square wave up to 1.25MHz, sine wave – 1kHz, Triangle wave by RC filtered Square.
•AC and DC coupling of the input signals to cut out unwanted dc offset.
•Indicator LEDs: Status, Wi-Fi and Trigger
•FFT Window functions: Hann, Hamming, Blackman, Rectangle
•FFT Vertical units: dBm, dBmV, V
•Logic Analyzer: 25MS/s, 8 channels, No protocol decoding as yet. You can analyze square signals upto 6.5V, 8 channel here.
•Requires an Android device with the Scoppy app installed (Premium upgrade required for channel 2 activation)
.
Order Procedure:
Click on the buy now button, it will redirect to my WhatsApp store, select what to buy, add it to the cart, and send me.
Then I will send payment QR
Make a payment, send a screenshot and address
Then I will make and send in a Week or two.
